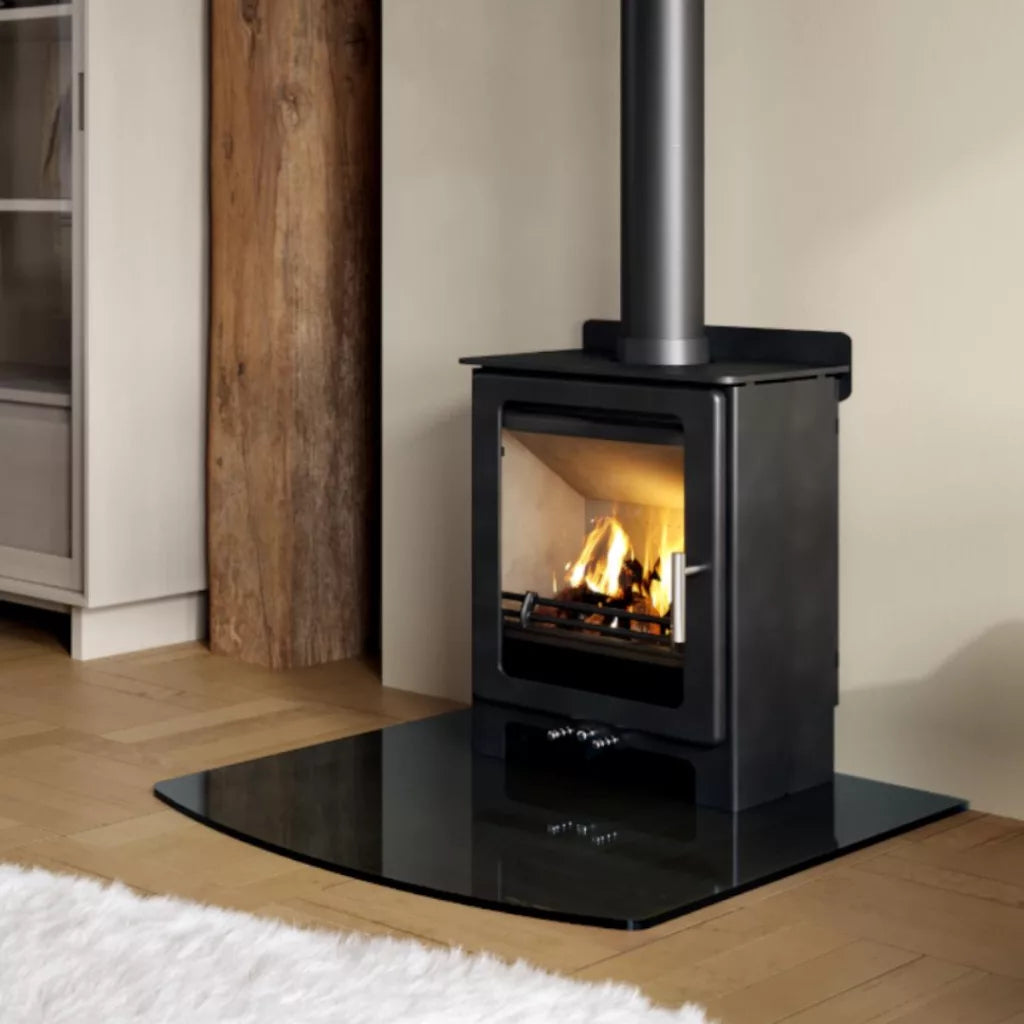

Mendip Loxton 5 SE Dual Control Woodburning/Multifuel Stove
Mendip Loxton 5 SE Dual Control Woodburning/Multifuel Stove
Couldn't load pickup availability
The Loxton 5 Dual Control (DC) stove takes the Loxton series to the next level, with a precisely crafted cast iron door, an easy-turn handle, and a larger glass area that beautifully showcases the flame. Blending seamlessly into both contemporary and traditional settings, the Loxton 5 DC is a versatile choice for any home.
The model preserves the standout features of the Loxton range, including a pre-heated secondary air wash system that keeps the glass clear by directing air to the core of the fire, reducing deposits. Designed with an external air connection like the larger Loxton 8 models, the Loxton 5 DC allows all combustion air to enter through an 80mm pipe connected to the back of the stove, supporting optimal performance and efficiency.
Products specifications
| Height | 614mm |
| Width | 505mm |
| Depth | 332mm |
| Weight | 94kg |
| Fuel Type | MF - Wood & Smokeless Fuels |
| Flue outlet size | 125 mm |
| Nominal Output | W: 5kW / C: 4.9kW |
| Output Range | 3-6kW |
| Ecodesign Ready | YES |
| Energy Rating | A+ |
| Efficiency | W: 79.5% / C: 76.5% |
| CO @ 13% | W 0.09 / C 0.08 |
| Particulates mg/mo3 @13% | W 27 C 17 |
| Maximum log length | 350mm |
| Distance to combustibles rear with collar convector fitted | 75mm |
| Distance combustible materials side | 350mm |
| Distance to combustibles side with side convection panel fitted | 250mm |
| Distance to centre of top flue outlet from back of stove | 130mm |
| Height to centre of rear outlet | 512mm |
| Colour | Black |
| Optional closed combustion | Yes |
| Smoke Control | Yes |
| Closed Combustion Outlet Size | 80mm ø |
| Suitable for glass floor plate | YES |
